507SMTP25B BRN

Name: 507SMTP25B BRN
Brand: Regal Rexnord
SKU: 507SMTP25B BRN
Price: 110,775.82 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

PL0008

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$110,775.82 / EA

Description

Brand Name

Browning®

Description

The Browning® TorqTaper® plus tapered bore system is a patented design that allows ease of installation and removal. The TorqTaper® plus bushing can be installed on either the inboard or outboard side of size 107 through 315 reducers. The system also utilizes a bronze stabilizer ring on the opposite end of the bushing. The stabilizer ring helps minimize fretting corrosion which makes removal of the reducer easier.

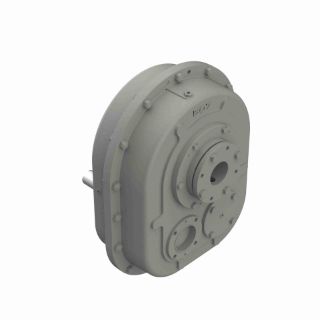

Browning® TorqTaper Plus Shaft Mount Reducer, 25:1 Gear Ratio, 1 hp, Soiled Shaft Input, Tapered Bore Output, 2.62 in Dia x 9.37 in L Input, 5-7/16 in Output, 41 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/900.34 in-lb Output, 11.78 in Centre Distance, Synthetic/Mineral Oil Lubrication, Cast Iron, 28.16 in L x 35.75 in H

Application

Aggregate, Cement, Agriculture, Grain, Minerals, Mining, Unit Handling, Water and Wastewater Industries

Standards

AGMA Standard

Features

Design provides full length bushing support of drive
Accommodates a wide range of shaft diameters
Reduces installation and removal time
Key to key drive provides maximum torque and shock load capacity
Eliminates fretting corrosion and seizing problems
Reduces wobble and accommodates undersized shaft
Patented barrier seal system includes standard double lip oil seals with V-ring face seal, grease packed labyrinth and external flinger
Single Taper Bushing, Exclusive single TorqTaper Bushing installs from driving side of the unit for easy on - easy off mounting
Standard Bearings, Commercially available Tapered Roller Bearings provide maximum overhung load capacity
Standard Seals, Commercially available double lip seals ride on plunge ground shafts
Options and Accessories, Complete range of motor mounts, belt guards, fan kits and backstop options

Specifications

Centre Distance:	11.78 in
Country of Origin:	US
Dimensions:	28.16 in L x 35.75 in H
Gear Ratio:	25:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	2.62 in Dia x 9.37 in L
Input Type:	Soiled Shaft
Lubrication Type:	Synthetic/Mineral Oil
Material:	Cast Iron
Output Maximum Speed:	41 rpm
Output Size:	5-7/16 in
Output Type:	Tapered Bore
Torque Rating:	36.013 in-lb Input/900.34 in-lb Output
