Name: 50H14H MSG
Brand: Martin Sprocket & Gear
SKU: 50H14H MSG
Price: 53.36 USD
Availability: OutOfStock

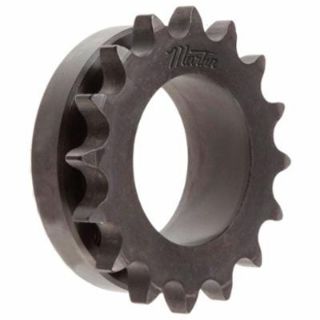

Martin 50H14H MST® H Bushed Solid Type 3 Split Single Roller Chain Sprocket With Recess Groove, 3/8 to 10-1/2 in Dia Bore, 3.113 in OD, 50 Chain, 14 Teeth, 5/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 50H14H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$53.36

Qty:

Product Details

Brand Name

Martin

Type

MST® H Bushed Solid Type 3

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Single Roller Chain Sprocket, MST® H Bushed Solid Type 3, 3/8 to 10-1/2 in Bore Dia, 3.113 in Outside Dia, 50 Chain, 14 Teeth, 5/8 in Pitch, 2.809 in, 2-1/2 in Hub Dia, 1-1/4 in Length Through Bore, Type H Split Taper Bushing, Steel

Specifications

Bore Diameter:	3/8 to 10-1/2 in
Bushing Type:	Type H Split Taper
Chain Size:	50
Country of Origin:	US
Hub Diameter:	2-1/2 in
Length Through Bore:	1-1/4 in
Material:	Steel
Number of Teeth:	14
Outside Diameter:	3.113 in
Pitch:	5/8 in
Pitch Diameter:	2.809 in
