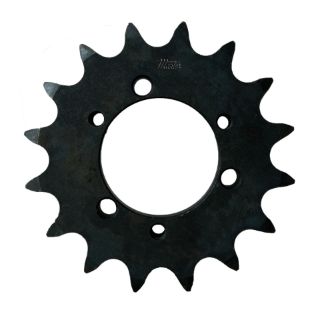

Picture of 50JA14H MSG
Actual Product May Vary From Image

50JA14H MSG

Martin 50JA14H Type B Single Strand Solid Bushed Roller Chain Sprocket With Hardened Teeth, 3/8 to 1-1/4 in Dia Bore, 3.113 in OD, #50 Chain, 14 Teeth, 5/8 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 50JA14H
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$47.72

Product Details

Brand Name

Martin

Type

Type B Single Strand Solid Bushed

Description

Martin saber tooth sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 rpm.
Martin Roller Chain Sprocket, Type B Single Strand Solid Bushed, 3/8 to 1-1/4 in Bore, 3.113 in OD, #50 Chain, 14 Teeth, 5/8 in Pitch, 2.8087 in Pitch Diameter, 2-1/8 in Diameter Hub, #10-24 UNC Screw, 5/8 in Length Through Bore, QD® JA Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
  • Interchangeable with other manufacturer's QD® bushings
  • Stocked heat treat
  • Manufactured of high carbon steel

Specifications

Bore Diameter:3/8 to 1-1/4 in
Bushing Type:QD® JA
Chain Size:#50
Hub Diameter:2-1/8 in
Length Through Bore:5/8 in
Material:Steel
Number of Teeth:14
Outside Diameter:3.113 in
Pitch:5/8 in
Pitch Diameter:2.8087 in
Screw Size:#10-24 UNC
