50P17H MSG

Name: 50P17H MSG
Brand: Martin Sprocket & Gear
SKU: 50P17H MSG
Price: 68.06 USD
Availability: OutOfStock

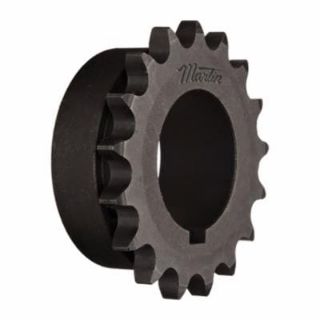

Martin 50P17H MST® P1 Bushed Solid Type 4 Split Single Roller Chain Sprocket With Recess Groove, 1/2 to 1-3/4 in Dia Bore, 3.718 in OD, 50 Chain, 17 Teeth, 5/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 50P17H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$68.06

Qty:

Product Details

Brand Name

Martin

Type

MST® P1 Bushed Solid Type 4

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Single Roller Chain Sprocket, MST® P1 Bushed Solid Type 4, 1/2 to 1-3/4 in Bore Dia, 3.718 in Outside Dia, 50 Chain, 17 Teeth, 5/8 in Pitch, 3.401 in, 2.96 in Hub Dia, 3/8 in W Keyway, 1-15/16 in Length Through Bore, Type P1 Split Taper Bushing, Steel

Specifications

Bore Diameter:	1/2 to 1-3/4 in
Bushing Type:	Type P1 Split Taper
Chain Size:	50
Country of Origin:	US
Hub Diameter:	2.96 in
Keyway Size:	3/8 in W
Length Through Bore:	1-15/16 in
Material:	Steel
Number of Teeth:	17
Outside Diameter:	3.718 in
Pitch:	5/8 in
Pitch Diameter:	3.401 in
