50P36 MSG

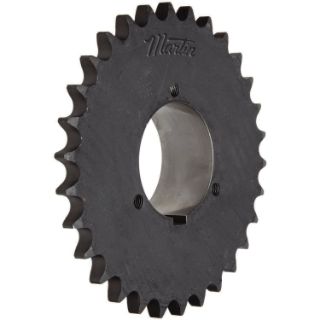

Picture of 50P36 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
50P36
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$151.15 / EA

Description

Brand Name

Martin

Type

Type 4 Single Strand Welded Bushed

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Roller Chain Sprocket, Type 4 Single Strand Welded Bushed, 1/2 to 1-3/4 in Bore, 7.519 in OD, #50 Chain, 36 Teeth, 5/8 in Pitch, 7.1711 in Pitch Diameter, 3-1/4 in Diameter Hub, 3/8 in Keyway, 1-5/16 in Length Through Bore, MST® P1 Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975 | CEMA Standard | MPTA | NIBA Certified | PTDA Approved

Features

  • Interchangeable with other manufacturer's split-taper bushings
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out

Specifications

Bore Diameter:1/2 to 1-3/4 in
Bushing Type:MST® P1
Chain Size:#50
Country of Origin:US
Hub Diameter:3-1/4 in
Keyway Size:3/8 in
Length Through Bore:1-5/16 in
Material:Steel
Number of Teeth:36
Outside Diameter:7.519 in
Pitch:5/8 in
Pitch Diameter:7.1711 in
