50Q112 BRN

Name: 50Q112 BRN
Brand: Regal Rexnord
SKU: 50Q112 BRN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1170950

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Single Strand Split Taper Bushed Type 4

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

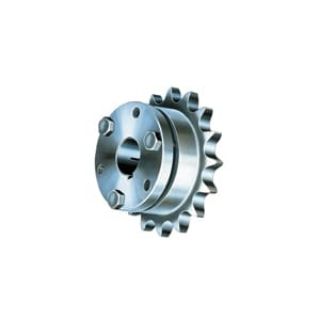

Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 4, 3/4 in Bore Dia, 22.665 in Outside Dia, #50 Chain, 112 Teeth, 22.285 in, 4-1/8 in Hub Dia, 2.8281 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 5/8 in pitch ANSI chain

Specifications

Bore Diameter:	3/4 in
Chain Size:	#50
Country of Origin:	CN
Hub Diameter:	4-1/8 in
Length Through Bore:	2.8281 in
Material:	Steel
Number of Teeth:	112
Outside Diameter:	22.665 in
Pitch Diameter:	22.285 in
