50Q37 BRN

Name: 50Q37 BRN
Brand: Regal Rexnord
SKU: 50Q37 BRN
Availability: OutOfStock

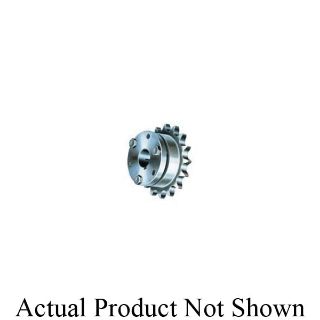

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1170760

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Single Strand

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand, 3/4 in Bore Dia, 7.718 in Outside Dia, #50 Chain, 37 Teeth, 5/8 in Pitch, 7.37 in, 4-1/8 in Hub Dia, 2-1/2 in Length Through Bore, Type 4 Split Taper Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 5/8 in pitch ANSI chain

Specifications

Bore Diameter:	3/4 in
Bushing Type:	Type 4 Split Taper
Chain Size:	#50
Country of Origin:	CN
Hub Diameter:	4-1/8 in
Length Through Bore:	2-1/2 in
Material:	Steel
Number of Teeth:	37
Outside Diameter:	7.718 in
Pitch:	5/8 in
Pitch Diameter:	7.37 in
