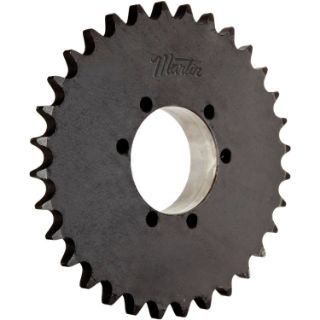

Picture of 50SDS24H MSG
Actual Product May Vary From Image

50SDS24H MSG

Martin 50SDS24H Type B Single Strand Solid Bushed Roller Chain Sprocket With Hardened Teeth, 1/2 to 2 in Dia Bore, 5.122 in OD, #50 Chain, 24 Teeth, 5/8 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 50SDS24H
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$85.03

Product Details

Brand Name

Martin

Type

Type B Single Strand Solid Bushed

Description

Martin saber tooth sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 rpm.
Martin Roller Chain Sprocket, Type B Single Strand Solid Bushed, 1/2 to 2 in Bore, 5.122 in OD, #50 Chain, 24 Teeth, 5/8 in Pitch, 4.7883 in Pitch Diameter, 3-1/4 in Diameter Hub, 1/4-20 UNC Screw, 3/4 in Length Through Bore, QD® SDS Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
  • Interchangeable with other manufacturer's QD® bushings
  • Stocked heat treat
  • Manufactured of high carbon steel

Specifications

Bore Diameter:1/2 to 2 in
Bushing Type:QD® SDS
Chain Size:#50
Hub Diameter:3-1/4 in
Length Through Bore:3/4 in
Material:Steel
Number of Teeth:24
Outside Diameter:5.122 in
Pitch:5/8 in
Pitch Diameter:4.7883 in
Screw Size:1/4-20 UNC
