Actual Product May Vary From Image

50TB36 BRN

Name: 50TB36 BRN
Brand: Regal Rexnord
SKU: 50TB36 BRN
Availability: OutOfStock

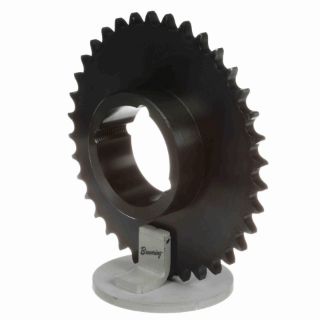

Browning® 3747078 Single Strand Taper Bore Bushed Type 1 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 7.519 in OD, #50 Chain, 36 Teeth, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3747078

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Taper Bore Bushed Type 1

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Taper Bore Bushed Type 1, 1/2 in Bore Dia, 7.519 in Outside Dia, #50 Chain, 36 Teeth, 7.171 in, 3.563 in Hub Dia, 1-1/4 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

This product has the Browning® exclusive twice the life guarantee
Compact design
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
1-11/16 in/ft taper
Setscrew or cap screw acts as external key
Flush fit, less space on shaft
No protruding flange
For use with 5/8 in pitch ANSI chain

Specifications

Bore Diameter:	1/2 in
Chain Size:	#50
Country of Origin:	CN
Hub Diameter:	3.563 in
Length Through Bore:	1-1/4 in
Material:	Steel
Number of Teeth:	36
Outside Diameter:	7.519 in
Pitch Diameter:	7.171 in
