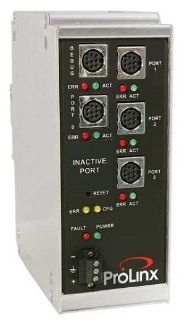

5102-DNPM-MCM3 PRS

DNP 3.0 Master to Modbus Master/Slave 3 Ports
Manufacturer: Prosoft Technology
Manufacturer part number: 5102-DNPM-MCM3
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

PROSOFT

Type

Stand-alone Gateway

Description

The DNP 3.0 Master to Modbus Master/Slave Gateway creates a powerful connection between devices on a DNP network and Modbus devices. This stand-alone DIN-rail mounted protocol gateway provides up to four serial ports. The DNP 3.0 Master protocol driver su

Application

Manufacturing, Oil and Gas, Electrical Power and Food Processing.

Standards

ATEX, CE/EMC, Environmental, UL,GOST-R

Features

Ideal solution for applications where DNP Master connectivity can be used to integrate Modbus devices into a system; The DNP gateway is a powerful module designed with both Server support, enabling easy connection to Rockwell Automation PLCs (CLX, SLC, PLC, CPLX, and similar devices).

Specifications

Configuration:Yes
Connectivity:Serial
Country of Origin:USA
Data Transfer Rate:110 to 115 KBPS
Enclosure:Aluminum
Environmental Conditions:-20 to 50DEG C Operating, -40 to 85DEG C Storage, 5 to 95 Percent Humidity
Ethernet:10Base-T
Frequency Rating:50 to 60 HZ
Height:5.2 IN
Interface:RS-232, RS-422, RS-485
Length:4.52 IN
Port:3
Protocol:DH485, DNP 3.0
Software Requirements:Drivers
Sub Brand:5000
Width:2.07 IN
