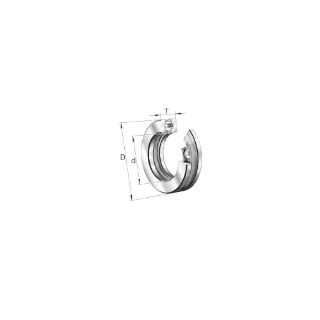

Actual Product May Vary From Image

51102 INA

Name: 51102 INA
Brand: INA
SKU: 51102 INA
Availability: OutOfStock

FAG 51102 Axial Deep Groove Ball Bearing, 15 mm Dia Bore, 28 mm OD, 1 Rows, 9 mm W, 10500 N Dynamic/16800 N Static Load

Manufacturer: INA

Manufacturer part number: 51102

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Description

FAG Axial Deep Groove Ball Bearing, Series: 511 Series, 15 mm Bore Dia, 28 mm Outside Dia, 1 Rows, 9 mm Width, Separable Face, Single Thrust Direction, 10500 N Dynamic/16800 N Static, Steel Bearing, 13100 rpm Maximum, -30 to 150 deg C

Specifications

Bore:	15
Bore Unit:	mm
Corner Radius:	0.3
Corner Radius Unit:	mm
Dyn load rating, axial (Ca):	10500
Dyn load rating, axial (Ca) Unit:	Newtons
Limiting Speed:	13100
Limiting Speed Unit:	1/min
OD:	28
OD Unit:	mm
Stat load rating, axial (C0a):	16800
Stat load rating, axial (C0a) Unit:	Newtons
Width:	9
Width Unit:	mm
