Actual Product May Vary From Image

51107 NAC

Name: 51107 NAC
Brand: Nachi Bearings
SKU: 51107 NAC
Price: 26.87 USD
Availability: OutOfStock

51107G - Single-direction Thrust Ball Bearing - Flat back-face type

Manufacturer: Nachi Bearings

Manufacturer part number: 51107G

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$26.87

Qty:

Product Details

Type

Single-direction Thrust Ball Bearing

Description

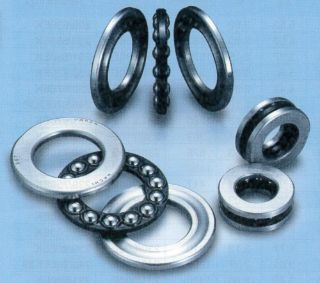

Ball thrust bearings consist of two grooved plates with a ball and cage assembly. Depending upon the size, they have a polyamide (G) or stamped steel cage. These bearings can sustain a high axial load in only one direction and are not intended for high speed or misalignment applications. - Heavy axial loads in one direction - High rigidity - Separable - Long life

Specifications

Bore (mm):	35
Boundary Dimensions (mm):	(35x52x12)
Configuration:	Open Ball Thrust Bearing
Dynamic Load Capacity Cr (N):	20400
Limiting Speed - Grease (rpm):	4000
Limiting Speed - Oil (rpm):	6000
Outside Diameter (mm):	52
Static Load Capacity Cor (N):	44500
Weight (lbs):	0.187
Width (mm):	12
