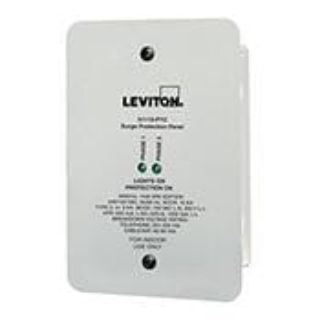

Actual Product May Vary From Image

51110-PTC LEV

Name: 51110-PTC LEV
Brand: Leviton Manufacturing
SKU: 51110-PTC LEV
Availability: OutOfStock

Leviton® 51110-PTC 51000 Type 2 Surge Protective Panel, 120/240 VAC, 50/60 Hz, 10 kA SCCR, 1 Phase

Manufacturer: Leviton Manufacturing

Manufacturer part number: 51110-PTC

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Type 2

Description

Leviton 51110 series Residential Surge Protection Panels are designed for mounting at the service entrance in homes, apartments and condominiums. They offer advanced surge protection for modern electronics and appliances, reducing the risk of damage from spikes and surges entering the property through AC power lines. The 51110-PTC also offers protection from surges coming through telephone and cable TV/satellite feeds.

Leviton® Surge Protective Panel, Type 2, Series: 51000, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 3 Wires, 10 kA Short Circuit, 96 kA Peak Surge Current, Modes of Protection: L-N/L-G/N-G/L-L, 1 ph, Environmental Conditions: -10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability, NEMA 1 Enclosure, Panel Mounting, Powder Coated Steel, 4.6 in H x 6.4 in W x 1.68 in D Dimensions

Application

Residential Applications

Standards

ANSI | IEEE C-62.41/C-62.45 | cULus 1449

Features

Real-time diagnostic visual indicator shows power and suppression status for each protected phase
150 maximum continuous operating voltage (MOV) rating allows for tolerance to line voltage swells
DHC power line carrier compatible
Permanently connected APDs intended for installation on the load side of these service equipment over current device, including APDs located at the branch panel, 2-pair Tele/Fax/Modem Dual CATV/SAT Type F
Hardwired parallel connection
51110-PTC model provides 4-wire telephone/fax/modem protection using hardwired screw terminations and dual CATV/satellite feed surge protection using Type "F" Connectors
4 mode protection
Powder coated steel

Specifications

Country of Origin:	MX
Dimensions:	4.6 in H x 6.4 in W x 1.68 in D
Electrical Ratings:	120/240 VAC
Enclosure Type:	NEMA 1
Environmental Conditions:	-10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability
Frequency Rating:	50/60 Hz
Material:	Powder Coated Steel
Modes of Protection:	L-N/L-G/N-G/L-L
Mounting Type:	Panel
Number of Wires:	3
Peak Surge Current:	96 kA
Phase:	1
Series:	51000
Short Circuit Current Rating:	10 kA
