Actual Product May Vary From Image

51205 NAC

Name: 51205 NAC
Brand: Nachi Bearings
SKU: 51205 NAC
Price: 60.69 USD
Availability: OutOfStock

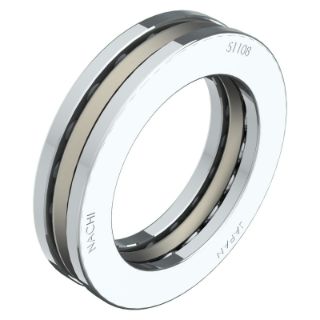

NACHI 51205G Open Thrust Ball Bearing, 25 mm Dia Bore, 47 mm OD, 15 mm W, 27800 N Dynamic/50500 N Static Load

Manufacturer: Nachi Bearings

Manufacturer part number: 51205G

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$60.69

Qty:

Product Details

Brand Name

NACHI

Type

Open

Description

Ball thrust bearings consist of two grooved plates with a ball and cage assembly. Depending upon the size, they have a polyamide (G) or stamped steel cage. These bearings can sustain a high axial load in only one direction and are not intended for high speed or misalignment applications.

NACHI Thrust Ball Bearing, Open, Series: 512, 25 mm Bore, 47 mm OD, 15 mm Width, Flat Back Face, Single Thrust Direction, 27800 N Dynamic/50500 N Static Load, 3700 rpm Grease/5600 rpm Oil Maximum

Application

Crane Hooks and Other Machine

Features

Heavy axial loads in one direction
High rigidity
Separable
Long life

Specifications

Bore Diameter:	25 mm
Country of Origin:	JP
Face Type:	Flat Back
Load Capacity:	27800 N Dynamic/50500 N Static
Maximum Speed:	3700 rpm Grease/5600 rpm Oil
Outside Diameter:	47 mm
Series:	512
Thrust Direction:	Single
Width:	15 mm
