51209 FAG

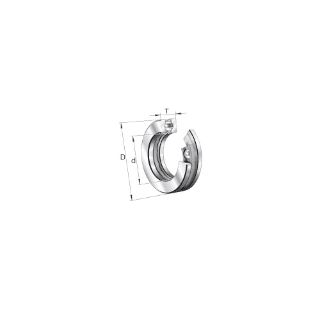

Picture of 51209 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
51209
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$92.46 / EA

Description

Brand Name

FAG

Description

FAG Axial Deep Groove Ball Bearing, Series: 512 Series, 45 mm Bore Dia, 73 mm Outside Dia, 1 Rows, 20 mm Width, Separable Face, Single Thrust Direction, 39000 N Dynamic/80000 N Static, Steel Bearing, 5500 rpm Maximum, -30 to 150 deg C

Standards

Meets to DIN 711/ISO 104

Features

Sheet steel cage

Specifications

Bearing Material:Steel
Bore Diameter:45 mm
Face Type:Separable
Load Capacity:39000 N Dynamic/80000 N Static
Maximum Speed:5500 rpm
Number of Rows:1
Outside Diameter:73 mm
Series:512 Series
Temperature Rating:-30 to 150 deg C
Thrust Direction:Single
Width:20 mm
