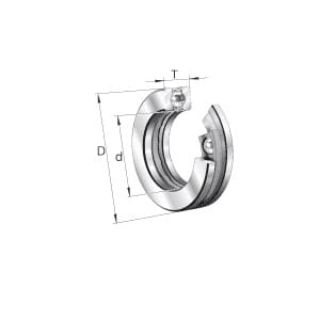

Actual Product May Vary From Image

51214 FAG

Name: 51214 FAG
Brand: INA
SKU: 51214 FAG
Price: 187.59 USD
Availability: OutOfStock

FAG 51214 Axial Deep Groove Ball Bearing, 70 mm Dia Bore, 105 mm OD, 1 Rows, 27 mm W, 66000 N Dynamic/159000 N Static Load

Manufacturer: INA

Manufacturer part number: 51214

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$187.59

Qty:

Product Details

Brand Name

FAG

Description

FAG Axial Deep Groove Ball Bearing, Series: 512 Series, 70 mm Bore Dia, 105 mm Outside Dia, 1 Rows, 27 mm Width, Separable Face, Single Thrust Direction, 66000 N Dynamic/159000 N Static, Steel Bearing, 4000 rpm Maximum, -30 to 150 deg C

Standards

Meets to DIN 711/ISO 104

Features

Sheet steel cage

Specifications

Bearing Material:	Steel
Bore Diameter:	70 mm
Face Type:	Separable
Load Capacity:	66000 N Dynamic/159000 N Static
Maximum Speed:	4000 rpm
Number of Rows:	1
Outside Diameter:	105 mm
Series:	512 Series
Temperature Rating:	-30 to 150 deg C
Thrust Direction:	Single
Width:	27 mm
