512U25D3ZC THO

Name: 512U25D3ZC THO
Brand: Thomson Industries
SKU: 512U25D3ZC THO
Availability: OutOfStock

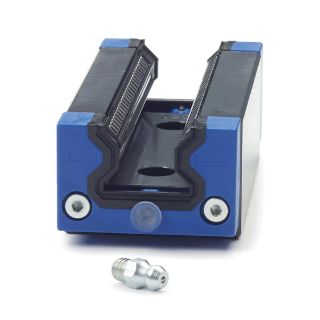

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

512U25D3ZC

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Description

Thomson® Roller Carriage, Series: 500, Narrow Long Block Style, 25 mm W Rail, 48 mm Width, 33.5 mm Height, 103.4 mm Length, 40 mm Slide Height, M6 Carriage Hole, For Use With: 522U25A 6000 mm L Standard Single Piece Profile Rail, 39100 N Dynamic/70300 N Static Load, 3 m/s Maximum, Steel Carriage, -40 to 80 deg C

Standards

RoHS Compliant

Features

Smooth, quiet movement through patented insert molded recirculation paths and optimized geometries
Simple installation and greater accuracy with joint-free rails up to 6 m
Superior rigidity and design flexibility
The carriage has built-in under carriage low drag longitudinal seals that protect the rollers and roller track surfaces from contamination
The rolling elements of the carriages are retained within the bearing so the carriage can be removed from the rail or the end cap from the carriage
Ultra precision grade accuracy class
Approximately 0.13 clearance preload

Includes

Bellow Clips and Metal Scraper

Specifications

Carriage Hole Size:	M6
Carriage Material:	Steel
Country of Origin:	DE
Height:	33.5 mm
Length:	103.4 mm
Load Capacity:	39100 N Dynamic/70300 N Static
Maximum Speed:	3 m/s
Rail Size:	25 mm W
Series:	500
Slide Height:	40 mm
Style:	Narrow Long Block
Suitable For Use With:	522U25A 6000 mm L Standard Single Piece Profile Rail
Temperature Rating:	-40 to 80 deg C
Width:	48 mm
