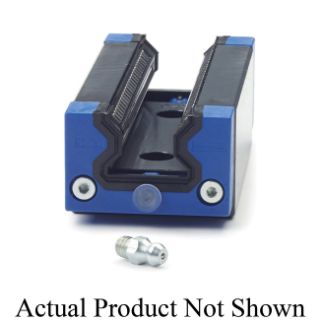

Picture of 512U35C1ES2 THO
Actual Product May Vary From Image

512U35C1ES2 THO

Thomson® 512U35C1ES2 500 Roller Carriage, Narrow Block Style, 35 mm W Rail, 109 mm L x 70 mm W x 47 mm H
Manufacturer: Thomson Industries
Manufacturer part number: 512U35C1ES2
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Description

Thomson® Roller Carriage, Series: 500, Narrow Block Style, 35 mm W Rail, 70 mm Width, 47 mm Height, 109 mm Length, 55 mm Slide Height, M8 Carriage Hole, For Use With: 522U35A 6000 mm L Standard Single Piece Profile Rail, 71500 N Dynamic/128500 N Static Load, 3 m/s Maximum, Steel Carriage, -40 to 80 deg C

Standards

RoHS Compliant

Features

  • Smooth, quiet movement through patented insert molded recirculation paths and optimized geometries
  • Simple installation and greater accuracy with joint-free rails up to 6 m
  • Superior rigidity and design flexibility
  • The carriage has built-in under carriage low drag longitudinal seals that protect the rollers and roller track surfaces from contamination
  • The rolling elements of the carriages are retained within the bearing so the carriage can be removed from the rail or the end cap from the carriage
  • Ultra precision grade accuracy class
  • Approximately 0.03 clearance preload
  • Side lubrication in end caps

Specifications

Carriage Hole Size:M8
Carriage Material:Steel
Country of Origin:DE
Height:47 mm
Length:109 mm
Load Capacity:71500 N Dynamic/128500 N Static
Maximum Speed:3 m/s
Rail Size:35 mm W
Series:500
Slide Height:55 mm
Style:Narrow Block
Suitable For Use With:522U35A 6000 mm L Standard Single Piece Profile Rail
Temperature Rating:-40 to 80 deg C
Width:70 mm
