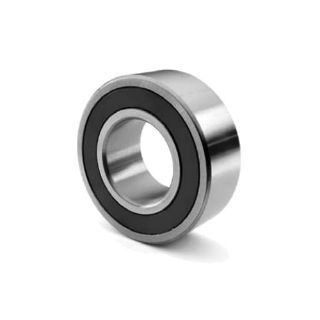

5200 2RS/C3 PRX/Q BLT

Name: 5200 2RS/C3 PRX/Q BLT
Brand: Bearings Limited
SKU: 5200 2RS/C3 PRX/Q BLT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

5200 2RS/C3 PRX/Q

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

TRITAN®

Type

Light Duty

Description

Double Row Angular Contact Ball Bearings are used in instances of heavy radial loads, combined radial and thrust loads and two directional loads. The correspond in design to 2 single row Angular Contact Ball Bearings but take up less axial space. They provide stiff bearing arrangements and are able to accommodate tilting moments.

TRITAN® Angular Contact Ball Bearing, Light Duty, Series: 5200 Series, 10 mm Bore, 30 mm OD, 2 Rows, 14 mm Width, Double Seal Closure, 1562 lb Load, 52100 Chromium Steel Bearing, Rubber Seal, Polyamide Cage, 14400 rpm Grease Maximum, -40 to 350 deg F

Application

For instances of heavy radial loads, combined radial and thrust loads and two directional loads applications

Standards

AFBMA Standard

Features

1562 lb dynamic/854 lb static load

Specifications

Bearing Material:	52100 Chromium Steel
Bore Diameter:	10 mm
Cage Material:	Polyamide
Closure Type:	Double Seal
Load Capacity:	1562 lb
Maximum Speed:	14400 rpm Grease
Number of Rows:	2
Outside Diameter:	30 mm
Seal Material:	Rubber
Series:	5200 Series
Temperature Rating:	-40 to 350 deg F
Width:	14 mm
