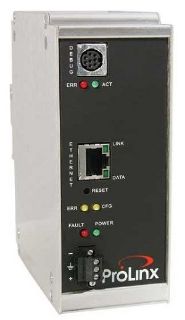

5201-DFNT-DNPSNET PRS

Name: 5201-DFNT-DNPSNET PRS
Brand: Prosoft Technology
SKU: 5201-DFNT-DNPSNET PRS
Availability: OutOfStock

EtherNet/IP to DNP 3.0 over Ethernet

Manufacturer: Prosoft Technology

Manufacturer part number: 5201-DFNT-DNPSNET

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

PROSOFT

Type

Stand-alone Gateway

Description

EtherNet/IP to DNP over Ethernet Gateway creates a powerful connection between devices on EtherNet/IP and DNP over Ethernet networks. This stand-alone DIN-rail mounted protocol gateway provides one Ethernet port. The EtherNet/IP protocol driver supports

Application

Manufacturing, Oil and Gas, Electrical Power and Food Processing.

Standards

ATEX, CE/EMC, Environmental, UL,GOST-R

Features

Ideal solution for joining EtherNet/IP and DNP over Ethernet networks; Designed with DFNT Client and Server support and DNP over Ethernet server support; Utilizes a shared database so that the two protocols can quickly transfer data between themselves.

Specifications

Configuration:	Yes
Connectivity:	Serial
Country of Origin:	USA
Data Transfer Rate:	110 to 115 KBPS
Enclosure:	Aluminum
Environmental Conditions:	-20 to 50DEG C Operating, -40 to 85DEG C Storage, 5 to 95 Percent Humidity
Ethernet:	10Base-T
Frequency Rating:	50 to 60 HZ
Height:	5.2 IN
Interface:	RS-232, RS-422, RS-485
Length:	4.52 IN
Port:	1
Protocol:	TCP, UDP, DNP 3.0
Software Requirements:	Drivers
Sub Brand:	5000
Width:	2.07 IN
