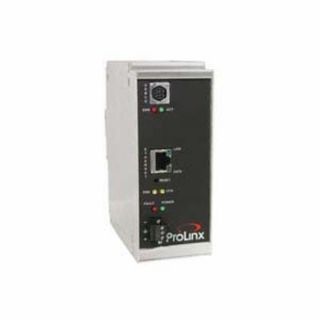

Picture of 5201-DFNT-EGD PRS
Actual Product May Vary From Image

5201-DFNT-EGD PRS

ProSoft Technology 5201-DFNT-EGD Gateway, Ethernet/IP Protocol, 50/60 Hz, RS232/422/485 Interface
Manufacturer: Prosoft Technology
Manufacturer part number: 5201-DFNT-EGD
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,419.00

Product Details

Brand Name

ProSoft Technology

Description

The ProLinx EtherNet/IP to GE Ethernet Global Data Gateway creates a powerful connection between EtherNet/IP and GE Ethernet Global Data networks. The module provides one Ethernet port. The EtherNet/IP protocol driver supports the Explicit Messaging implementation of the protocol. User-configurable as both a Client and a Server, the EtherNet/IP port is a very powerful data transfer tool. The EGD modules offer one-to-one or one-to-many interconnect scenarios. Data is exchanged between devices and/or networks using a shared common database and an efficient but powerful wireless protocol. This common database provides the "backbone" communications for various field devices using different networks.
ProSoft Technology Gateway, Ethernet/IP Protocol, 50/60 Hz Frequency, RS232/422/485 Interface, 110/115 kbps Data Transfer Rate, DB-9M RS-232/10Base-T Half Duplex RJ-45 Port, 1 Ports, 5.2 in H x 2.07 in W x 4.52 in D, Environmental Conditions: -4 to 122 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity

Application

For the many applications where EtherNet/IP connectivity can be used to integrate GE Ethernet global data devices into a system

Standards

UL 1577

Features

  • EtherNet/IP to GE ethernet global data
  • The EtherNet/IP protocol is one of the primary connectivity tools to the different Rockwell automation platforms
  • The explicit messaging aspect of the protocol (only) has been implemented in the ProLinx units to provide the data transfer link between the ProLinx units and the Rockwell automation hardware
  • In combination with the GE ethernet global data device support, the module provides a very powerful interface to the many EtherNet/IP devices which are in use in the industrial marketplace today
  • Applications for the module are found in most industries, especially manufacturing, oil/gas, electrical power and food processing
  • 24 vdc nominal/18 to 32 vdc allowed power supply with positive/negative/GND terminals
  • 2.5 mm screwdriver blade power supply
  • 500 mA at 32 vdc maximum current load
  • Power and module status, application status, serial port activity and serial port error status LED indicator
  • DB-9M RS-232 only configuration serial port with no hardware handshaking
  • 10Base-T half-duplex RJ45 connector ethernet port
  • Link and activity LED indicators
  • Electrical isolation 1500 Vrms at 50/60 Hz for 60 s
  • Modbus plus connector and two DB9 female standard modbus plus connectors application ports
  • 2500 Vrms port signal isolation per UL 1577, 3000 vdc minimum port to ground and port to logic power isolation - serial port isolation
  • -40 to 185 deg F storage temperature

Includes

Mini-DIN to DB-9M Serial Cables, 4 ft RS-232 Configuration Cable, 2.5 mm Screwdriver, CD (docs , configuration utility) , RS-422/485 DB-9 to Screw Terminal Adaptor (1/4, depending on ports)

Specifications

Country of Origin:US
Data Transfer Rate:110/115 kbps
Dimensions:5.2 in H x 2.07 in W x 4.52 in D
Environmental Conditions:-4 to 122 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity
Frequency Rating:50/60 Hz
Interface:RS232/422/485
Number of Ports:1
Port Type:DB-9M RS-232/10Base-T Half Duplex RJ-45
Protocol:Ethernet/IP
