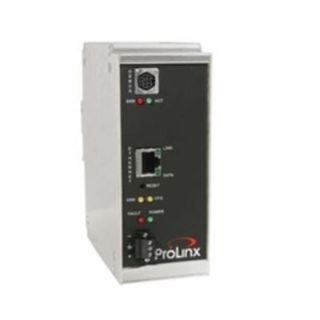

Picture of 5201-MNET-DNPSNET PRS
Actual Product May Vary From Image

5201-MNET-DNPSNET PRS

ProSoft Technology 5201-MNET-DNPSNET Modbus TCP/IP to DNP 3.0 Over Ethernet Gateway, TCP/UDP/DNP 3.0 Protocol, 50/60 Hz, RS232/422/485 Interface
Manufacturer: Prosoft Technology
Manufacturer part number: 5201-MNET-DNPSNET
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

ProSoft Technology

Description

The ProLinx modbus TCP/IP to DF1 master/slave gateway creates a powerful connection between devices on a modbus TCP/IP network and DF1 devices. This stand-alone DIN rail mounted protocol gateway provides one EtherNet port and up to four serial ports. The modbus TCP/IP protocol driver can interface many different protocols into Schneider electric Quantum processors as well other solutions supporting the protocol. The MNET driver supports client and server connections and when coupled with the web option provides a web/ftp interface as well. The DF1 protocol driver supports master or slave implementations of the protocol on each DF1 port. All DF1 ports are individually configurable.
ProSoft Technology Modbus TCP/IP to DNP 3.0 Over Ethernet Gateway, TCP/UDP/DNP 3.0 Protocol, 50/60 Hz, RS232/422/485 Interface Type, 110 to 115 kbps Data Transfer Rate, Serial Port, 1 Port, 5.2 in H x 2.07 in W x 4.52 in D, Environmental Conditions: 5 to 95% Humidity

Application

Manufacturing, Oil and Gas, Electrical Power and Food Processing

Standards

ATEX | CE/EMC | UL Listed | GOST-R

Features

  • 18 to 32 VDC allowed positive, negative, GND terminals 2.5 mm screwdriver blade power supply
  • -4 to 122 deg F operating temperature
  • Power and module status, application status, serial port activity, serial port error status LED indicators
  • DB-9M RS-232 only no hardware handshaking configuration serial port
  • 10 base-T half duplex RJ45 connector, link and activity LED indicators, 1500 Vrms at 50 Hz to 60 Hz for 60 s electrical isolation, EtherNet broadcast storm resiliency equals less than or equal to 5000 frames/sec and less than or equal to 5 minutes duration
  • Modbus plus connector two DB9 female standard modbus plus connectors are application ports
  • 2500 Vrms port signal isolation per UL 1577, 3000 VDC minimum port to ground and port to logic power isolation serial port isolation

Specifications

Data Transfer Rate:110 to 115 kbps
Dimensions:5.2 in H x 2.07 in W x 4.52 in D
Environmental Conditions:5 to 95% Humidity
Frequency Rating:50/60 Hz
Interface:RS232/422/485
Number of Ports:1
Port Type:Serial
Protocol:TCP/UDP/DNP 3.0
