Actual Product May Vary From Image

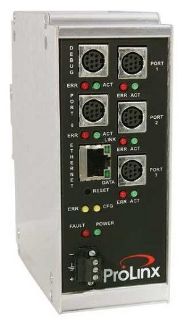

5202-104S-MCM4 PRS

Name: 5202-104S-MCM4 PRS
Brand: Prosoft Technology
SKU: 5202-104S-MCM4 PRS
Availability: OutOfStock

IEC 60870-5-104 Server to Modbus Master/Slave (4 ports)

Manufacturer: Prosoft Technology

Manufacturer part number: 5202-104S-MCM4

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

PROSOFT

Type

Stand-alone Gateway

Description

IEC60870-5-104 Server to Modbus Master/Slave communications module (5201-104S-MCM) creates a powerful connection between devices on a Modbus network and an IEC 104 client device. The module is a stand-alone DIN-rail mounted protocol gateway that provides

Application

Manufacturing, Oil and Gas, Electrical Power and Food Processing.

Standards

ATEX, CE/EMC, Environmental, UL,GOST-R

Features

Ideal solution for applications where Modbus connectivity can be used to integrate an IEC 104 slave device into a system; Powerful module designed with both Master and Slave support, enabling easy connection to other Modbus devices (Modicon processors and many others).

Specifications

Configuration:	Yes
Connectivity:	Serial
Country of Origin:	USA
Data Transfer Rate:	110 to 115 KBPS
Enclosure:	Aluminum
Environmental Conditions:	-20 to 50DEG C Operating, -40 to 85DEG C Storage, 5 to 95 Percent Humidity
Ethernet:	10Base-T
Frequency Rating:	50 to 60 HZ
Height:	5.2 IN
Interface:	RS-232, RS-422, RS-485
Length:	4.52 IN
Port:	5
Protocol:	SNTP, MCM, IEC 60870-5-104
Software Requirements:	Drivers
Sub Brand:	5000
Width:	2.07 IN

Resources

Spec Sheet Warranty
