5205-104S-PDPS PRS

Name: 5205-104S-PDPS PRS
Brand: Prosoft Technology
SKU: 5205-104S-PDPS PRS
Availability: OutOfStock

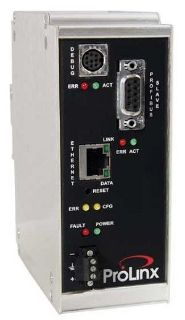

IEC 60870-5-104 Server to PROFIBUS DP Slave

Manufacturer: Prosoft Technology

Manufacturer part number: 5205-104S-PDPS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

PROSOFT

Type

Stand-alone Gateway

Description

IEC 60870-5-104 Server to PROFIBUS DP Slave Gateway creates a powerful connection between devices on an IEC 104 network and PROFIBUS DP Master devices. This stand-alone DIN-rail mounted gateway provides one PROFIBUS DP-V0 Slave DB9F port and one IEC 104 S

Application

Manufacturing, Oil and Gas, Electrical Power and Food Processing.

Standards

ATEX, CE/EMC, Environmental, UL,GOST-R

Features

Powerful network integration; IEC 60870-5-104 Server protocol Interface; PROFIBUS DP-V0 Slave protocol interface

Specifications

Configuration:	Yes
Connectivity:	Serial
Country of Origin:	USA
Data Transfer Rate:	9.6KBPS to 12MBPS
Enclosure:	Aluminum
Environmental Conditions:	-20 to 50DEG C Operating, -40 to 85DEG C Storage, 5 to 95 Percent Humidity
Ethernet:	10Base-T
Frequency Rating:	50 to 60 HZ
Height:	5.2 IN
Interface:	RS-232, RS-422, RS-485
Length:	4.52 IN
Port:	2
Protocol:	PDPS, EtherNet/IP, IEC60870-5-104
Software Requirements:	Drivers
Sub Brand:	5000
Width:	2.07 IN
