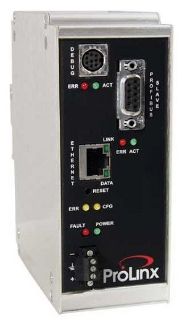

Actual Product May Vary From Image

5205-BACNET-PDPS PRS

Name: 5205-BACNET-PDPS PRS
Brand: Prosoft Technology
SKU: 5205-BACNET-PDPS PRS
Availability: OutOfStock

BACNET - PROFIBUS DP Slave Gateway

Manufacturer: Prosoft Technology

Manufacturer part number: 5205-BACNET-PDPS

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

PROSOFT

Type

Stand-alone Gateway

Description

BACnet/IP Client to PROFIBUS DPV0 Slave Gateway creates a powerful connection between a PROFIBUS Master and BACnet/IP devices. This stand-alone DIN-rail mounted protocol gateway provides a PROFIBUS Slave port and a single Ethernet port. The ProLinx BACnet

Standards

ATEX, CE/EMC, Environmental, UL,GOST-R

Features

Standard protocol for Building Automation and Control limited to Analog and Digital I/O commands; Adds BACnet/IP device monitoring and control to a PROFIBUS DP network; Communicate with Building Automation controllers, HVAC, Fire and Safety equipment; Support for Trane Building Control Unit (BCU)

Specifications

Country of Origin:	USA
Enclosure:	Aluminum
Environmental Conditions:	-20 to 50DEG C Operating, -40 to 85DEG C Storage, 5 to 95 Percent Humidity
Ethernet:	10Base-T
Frequency Rating:	50 to 60 HZ
Height:	5.2 IN
Interface:	RS-232, RS-422, RS-485
Length:	4.52 IN
Sub Brand:	5000
Width:	2.07 IN

Resources

Spec Sheet Warranty
