5206 E BLT

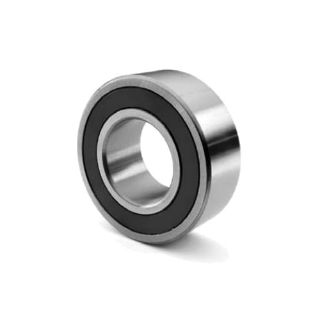

Picture of 5206 E BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
5206 E
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$34.16 / EA

Description

Brand Name

TRITAN®

Description

Double Row Angular Contact Ball Bearings are used in instances of heavy radial loads, combined radial and thrust loads and two directional loads. The correspond in design to 2 single row Angular Contact Ball Bearings but take up less axial space. They provide stiff bearing arrangements and are able to accommodate tilting moments.
TRITAN® Angular Contact Ball Bearing, 30 mm Bore, 62 mm OD, 2 Rows, 23.8 mm Width, 6430 lb Load, 52100 Chromium Steel Bearing, Polyamide Cage, 7000 rpm Grease/9500 rpm Oil Maximum

Application

For instances of heavy radial loads, combined radial and thrust loads and two directional loads applications

Standards

AFBMA Standard

Features

6430 lb dynamic/4586 lb static load

Specifications

Bearing Material:52100 Chromium Steel
Bore Diameter:30 mm
Cage Material:Polyamide
Load Capacity:6430 lb
Maximum Speed:7000 rpm Grease/9500 rpm Oil
Number of Rows:2
Outside Diameter:62 mm
Width:23.8 mm
