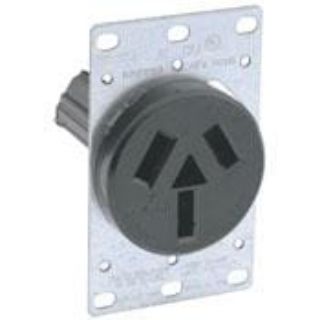

Picture of 5206 LEV
Actual Product May Vary From Image

5206 LEV

Leviton® 5206 Flush Mount Non-Grounding Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 3 Wires, Black
Manufacturer: Leviton Manufacturing
Manufacturer part number: 5206
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Flush Mount Non-Grounding

Description

Built of durable thermoplastic, Leviton power receptacles come equipped with heavy gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.
Leviton® Straight Blade Receptacle, Flush Mount Non-Grounding, 125/250 VAC, 50 A, 3 hp, 3 Pole, 3 Wires, NEMA 10-50R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 3.7 in H x 2.25 in W x 2.22 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 File No. 42 | CSA File No. File 152105 | NEMA WD-6 | NOM 057 Certified | UL 498 | UL File No. E13399 | UL File No. E13393

Features

  • Flush mounting
  • Non-grounding
  • 2000 V (min) dielectric strength
  • UL 94V-2 flammability rated
  • Industrial grade
  • Galvanized steel strap material
  • 14 to 6 AWG wire

Specifications

Amperage Rating:50 A
Color:Black
Country of Origin:MX
Dimensions:3.7 in H x 2.25 in W x 2.22 in D
Grade:Commercial
Horsepower:3 hp
Material:Thermoplastic
NEMA Rating:NEMA 10-50R
Number of Poles:3
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125/250 VAC
