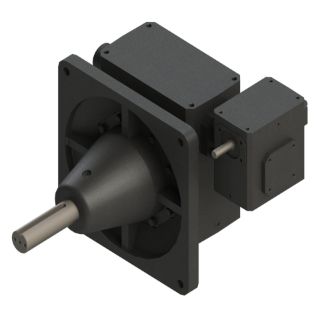

Actual Product May Vary From Image

5207 1000/1 WR STD FLANGE HUB

Name: 5207 1000/1 WR STD FLANGE HUB
SKU: 5207 1000/1 WR STD FLANGE HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-40213 5200 Double Reduction Right Angle Standard Worm Gear Reducer With Drop Bearing Mounting Flange, Shaft Input, Shaft Output, 1.19 hp Input, 1000:1 Gear, 1.75 rpm Maximum Output, 19580 in-lb Output Torque Rating

Manufacturer part number: 0230-40213

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 5200, 1000:1 Gear Ratio, 1.19 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 2.188 in Dia x 5.53 in L Output, 1.75 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 19580 in-lb Output, 5.16 in Centre Distance, 3/16 x 3/32 in Input, 1/2 x 1/4 in Output Keyway, 45.7 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	45.7 %
Gear Ratio:	1000:1
Horsepower:	1.19 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	1.75 rpm
Output Size:	2.188 in Dia x 5.53 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	19580 in-lb Output
