5207KG TKN

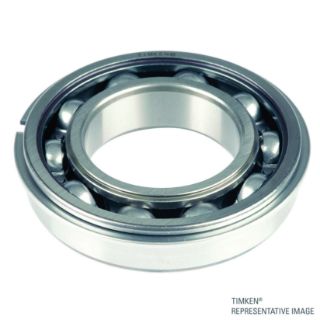

Picture of 5207KG TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
5207KG Z5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Fafnir®

Type

Light Duty

Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.
Timken® Fafnir®, 5207KG Z5, Angular Contact Ball Bearing, Light Duty, Series: 5200, 35 mm Bore, 72 mm OD, 2 Rows, 27 mm Width, 20 deg Contact Angle, Open Closure, 9980 lb Dynamic/6620 lb Static Load, Steel Bearing, -50 to 120 deg C

Application

Agriculture, Chemical, General Industry and Utilities

Features

  • Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
  • Features the same bores and outside diameters as corresponding bearings in the 200 series single-row radial type
  • Double-row angular contact ball bearings meet the demand for increased axial and radial rigidity in applications where the design limits space
  • These double-row series bearings are not pre-lubricated

Specifications

Bearing Material:Steel
Bore Diameter:35 mm
Cage Material:Steel
Closure Type:Open
Contact Angle:20 deg
Country of Origin:US
Load Capacity:9980 lb Dynamic/6620 lb Static
Number of Rows:2
Outside Diameter:72 mm
Series:5200
Temperature Rating:-50 to 120 deg C
Width:27 mm

Products Specifications

Bore Size
35 mm
Brand Name
Timken
