5208 E BLT

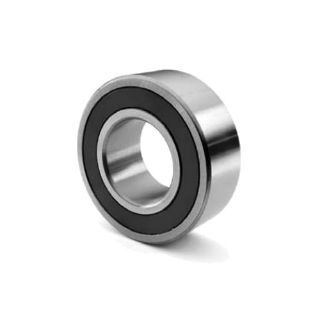

Picture of 5208 E BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
5208 E
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$46.92 / EA

Description

Brand Name

TRITAN®

Description

Double Row Angular Contact Ball Bearings are used in instances of heavy radial loads, combined radial and thrust loads and two directional loads. The correspond in design to 2 single row Angular Contact Ball Bearings but take up less axial space. They provide stiff bearing arrangements and are able to accommodate tilting moments.
TRITAN® Angular Contact Ball Bearing, 40 mm Bore, 80 mm OD, 2 Rows, 30.2 mm Width, 9554 lb Load, 52100 Chromium Steel Bearing, Polyamide Cage, 5600 rpm Grease/7500 rpm Oil Maximum

Application

For instances of heavy radial loads, combined radial and thrust loads and two directional loads applications

Standards

AFBMA Standard

Features

9554 lb dynamic/7306 lb static load

Specifications

Bearing Material:52100 Chromium Steel
Bore Diameter:40 mm
Cage Material:Polyamide
Load Capacity:9554 lb
Maximum Speed:5600 rpm Grease/7500 rpm Oil
Number of Rows:2
Outside Diameter:80 mm
Width:30.2 mm
