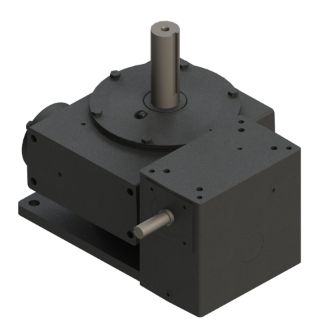

Actual Product May Vary From Image

5209 50/1 WR AL,AR OUTPUT HUB

Name: 5209 50/1 WR AL,AR OUTPUT HUB
SKU: 5209 50/1 WR AL,AR OUTPUT HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-40301 5200 AL AR Output Double Reduction Right Angle Worm Gear Reducer, Shaft Input, Shaft Output, 9.65 hp Input, 50:1 Gear, 35 rpm Maximum Output, 12500 in-lb Output Torque Rating

Manufacturer part number: 0230-40301

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

AL AR Output Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, AL AR Output Double Reduction Right Angle, Series: 5200, 50:1 Gear Ratio, 9.65 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 2 in Dia x 4-1/4 in L Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 12500 in-lb Output, 5.16 in Centre Distance, 3/16 x 3/32 in Input, 1/2 x 1/4 in Output Keyway, 71.9 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	71.9 %
Gear Ratio:	50:1
Horsepower:	9.65 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	35 rpm
Output Size:	2 in Dia x 4-1/4 in L
Output Type:	Shaft
Series:	5200
Torque Rating:	12500 in-lb Output
