520C7W LEV

Name: 520C7W LEV
Brand: Leviton Manufacturing
SKU: 520C7W LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

520C7W

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

North American Configuration Watertight

Alternate Supplier #

Grainger - 25KR83

Description

Leviton® pin and sleeve devices are easy to use. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device, devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve ON the female device and the number of conductors. This location is based on a clock face with the key way at the 6 oclock position. The ground sleeve is positioned at a specific hour location, depending ON the devices voltage rating.

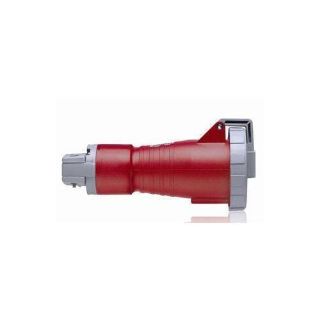

Leviton®, 520C7W, Sleeve And Pin Connector, North American Configuration Watertight, Series: Series II, 277/480 VAC, 20 A, 50/60 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Red, 42 in Dia x 7.95 in L Dimensions

Application

Industrial Applications

Standards

CE 73/23/93/68/EEC | CSA C22.2 No. 182.1 | IEC 60309-1/60309-2 | UL 1682/1686 | UL 94 V-2 Flammability Rated

Features

Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
Rear terminals, raised lettering identification
Calibrated, self-adjusting contacts
Front terminals, raised lettering identification
Rugged housing, made of superior performance valox™357, provides maximum corrosion protection and makes the device resistant to impact and abuse, greater resistance to temperature extremes, V-0 flame rated and superior UV stability
Contact carrier resists arcing and internal heat build-up, 60 and 100 A contact/pin carriers are made of reinforced nylon for even greater strength and temperature resistance
Zinc coated steel terminal screws on 20 A and 30 A devices
Dependable, clean brass construction for long life, reliable electrical contact, maximum conductivity and corrosion resistance
Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front and back sides
Multiple contact points assure a continuously reliable electrical connection
Engineered to IP67 watertight and IP69K high pressure, high temperature washdown standards

Specifications

Amperage Rating:	20 A
Color:	Red
Country of Origin:	CZ
Dimensions:	42 in Dia x 7.95 in L
Enclosure:	IP67
Frequency Rating:	50/60 Hz
Grade:	Industrial
Material:	Valox® 357
Number of Poles:	4
Number of Wires:	5
Series:	Series II
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	277/480 VAC
