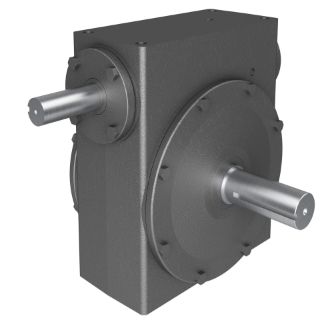

Actual Product May Vary From Image

521 10/1 C WR HUB

Name: 521 10/1 C WR HUB
SKU: 521 10/1 C WR HUB
Availability: OutOfStock

Hub City® 0220-65114 520 Right Angle Single Reduction Style C Worm Gear Reducer, Shaft Input, Shaft Output, 25.9 hp Input, 10:1 Gear, 175 rpm Maximum Output, 8183 in-lb Output Torque Rating

Manufacturer part number: 0220-65114

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 520, 10:1 Gear Ratio, 25.9 hp Input, Shaft Input, Shaft Output, 1.125 in Dia x 3.27 in L Input, 1.625 in Dia x 4.47 in L Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 8183 in-lb Output, 5.16 in Centre Distance, 1/4 x 1/8 in Input, 3/8 x 3/16 in Output Keyway, 87.7 % Efficiency, Conventional Oil Lubrication, Cast Iron, 13.167 in H

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Country of Origin:	US
Dimensions:	13.167 in H
Efficiency:	87.7 %
Gear Ratio:	10:1
Horsepower:	25.9 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.125 in Dia x 3.27 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	1.625 in Dia x 4.47 in L
Output Type:	Shaft
Series:	520
Torque Rating:	8183 in-lb Output
