5212W TKN

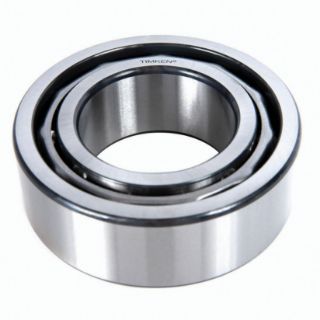

Picture of 5212W TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
5212W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$390.16 / EA

Description

Brand Name

Fafnir®

Type

Light Maximum Capacity

Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.
Timken® Fafnir®, 5212W, Angular Contact Ball Bearing, Light Maximum Capacity, Series: 5200, 60 mm Bore, 110 mm OD, 2 Rows, 36.5 mm Width, 30 deg Contact Angle, Open Closure, 21500 lb Dynamic/20000 lb Static Load, Steel Bearing, 3530 rpm Maximum, -50 to 120 deg C, Uncoated

Application

Agriculture, Chemical, General Industry and Utilities

Features

  • Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
  • Features the same bores and outside diameters as corresponding bearings in the 200 series single-row radial type
  • Double-row angular contact ball bearings meet the demand for increased axial and radial rigidity in applications where the design limits space
  • These double-row series bearings are not pre-lubricated

Specifications

Bearing Material:Steel
Bore Diameter:60 mm
Cage Material:Steel
Closure Type:Open
Contact Angle:30 deg
Country of Origin:US
Finish:Uncoated
Load Capacity:21500 lb Dynamic/20000 lb Static
Maximum Speed:3530 rpm
Number of Rows:2
Outside Diameter:110 mm
Series:5200
Temperature Rating:-50 to 120 deg C
Width:36.5 mm

Products Specifications

Bore Size
60 mm
Brand Name
Timken
