5215C3 BLT

Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads. Balls are separated by steel cages, permitting high speed operation. Double row angular contact bearings are designed to accommodate combined simultaneous acting axial and radial loads. Balls are normally separated by high speed polyamide cages. Most bearings are prelubricated with Mobil Polyrex™ EM grease or Chevron SRI-2, which provides excellent lubrication up to 350 deg F. Sealed and shielded bearings are lubricated for life.

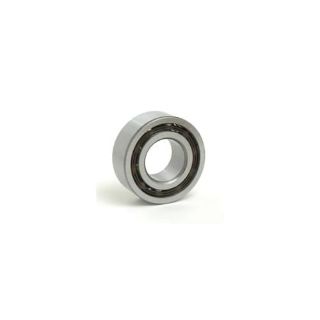

TRITAN® Angular Contact Ball Bearing, Light Duty, Series: 5200, 75 mm Bore, 130 mm OD, 2 Rows, 41.3 mm Width, Open Closure, 20300 lb Load, 52100 Steel Bearing, Polyamide Cage, 3600 rpm Maximum, -20 to 248 deg F
