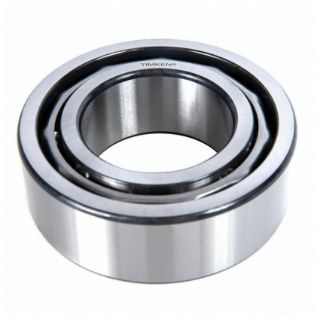

Actual Product May Vary From Image

5217 TKN

Name: 5217 TKN
Brand: Timken
SKU: 5217 TKN
Price: 857.66 USD
Availability: OutOfStock

Ball Angular Contact Double Row

Manufacturer: Timken

Manufacturer part number: 5217

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$857.66

Qty:

Product Details

Brand Name

Timken Fafnir

Description

Timken angular contact ball bearings are designed to handle high-speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our Products offering includes a range of single-row universally matched, single-row standard, and double-row products with different cage types, contact angles and tolerances.

Ball Angular Contact Double Row | 85 mm 3.3 in Bore | 150 mm 5.9 in OD

Features

Enhanced raceway finish
Quiet operation
Dimensionally interchangeable

Specifications

Bearing Material:	Steel
Bearing Type:	Ball Bearing
Bore Size (ID) - in:	3.3465
Bore Size (ID) - mm:	85.0011
Bore Type:	Straight
Closure (Seal) type:	Open
Component (I/R; O/R assembly):	Assembly
Contact Angle:	30
Dynamic Load Rating:	41700
Fillet Radius - Inch:	0.079
Fillet Radius - Millimeter:	2.0066
Flush Ground:	No
Inner Ring Width - Inch:	1.9375
Inner Ring Width - Millimeter:	49.2125
Load Rating UOM:	LB
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/ball/angular-contact/
Material - Rolling Elements (Ball or Roller):	Ball
Maximum Capacity / Filling Slot:	No
Maximum Operating RPM (Grease):	54093.8203219664
Maximum Operating RPM (Oil):	64912.5843863597
Number of Bearings:	1
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	5.9055
Outer Diameter - mm:	149.9997
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	1.9375
Outer Ring Width - Millimeter:	49.2125
Overall Width - in:	1.9375
Overall Width - mm:	49.2125
Precision class:	ABEC-1
Retainer Material:	Steel
Rolling Element:	Ball
Row Type:	Double
Series:	5200
Static Load Rating:	40200
