Name: 521H25A+220 THO
Brand: Thomson Industries
SKU: 521H25A+220 THO
Availability: OutOfStock

521H25A+220 THO

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

521H25A+220

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Description

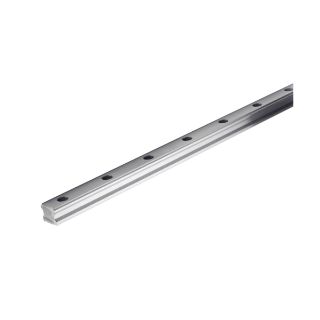

Thomson® Profile Rail, Series: 500, Standard Bolt Down From The Top Style, 25 mm Rail, 220 mm Length, 23 mm Width, 22.7 mm Height, Hex Head Screw, M6 Screw, 4 Rail Holes, 60 mm Mounting Hole Center to Center, 20 mm Mounting Hole to Edge, -40 to 80 deg C, Steel, For Use With: 500 Series Standard Ball Carriages

Standards

RoHS Compliant

Features

Straighter rails through advanced grinding technologies
Simple installation and greater accuracy with joint-free rails up to 6 m
High grade accuracy class

Specifications

Country of Origin:	DE
Height:	22.7 mm
Length:	220 mm
Material:	Steel
Mounting Hole Center to Center:	60 mm
Mounting Hole to Edge:	20 mm
Number of Rail Holes:	4
Rail Size:	25 mm
Screw Size:	M6
Screw Type:	Hex Head
Series:	500
Style:	Standard Bolt Down From The Top
Suitable For Use With:	500 Series Standard Ball Carriages
Temperature Rating:	-40 to 80 deg C
Width:	23 mm
