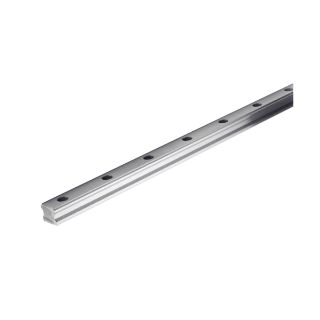

Actual Product May Vary From Image

521H25A+640 THO

Name: 521H25A+640 THO
Brand: Thomson Industries
SKU: 521H25A+640 THO
Availability: OutOfStock

Thomson® 521H25A+640 500 Profile Rail, Standard Bolt Down From The Top Style, 25 mm Rail, 640 mm L x 22.7 mm H

Manufacturer: Thomson Industries

Manufacturer part number: 521H25A+640

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Profile Rail, Series: 500, Standard Bolt Down From The Top Style, 25 mm Rail, 640 mm Length, 23 mm Width, 22.7 mm Height, Hex Head Screw, M6 Screw, 11 Rail Holes, 60 mm Mounting Hole Center to Center, 20 mm Mounting Hole to Edge, -40 to 80 deg C, Steel, For Use With: 500 Series Standard Ball Carriages

Standards

RoHS Compliant

Features

Straighter rails through advanced grinding technologies
Simple installation and greater accuracy with joint-free rails up to 6 m
High grade accuracy class

Specifications

Country of Origin:	DE
Height:	22.7 mm
Length:	640 mm
Material:	Steel
Mounting Hole Center to Center:	60 mm
Mounting Hole to Edge:	20 mm
Number of Rail Holes:	11
Rail Size:	25 mm
Screw Size:	M6
Screw Type:	Hex Head
Series:	500
Style:	Standard Bolt Down From The Top
Suitable For Use With:	500 Series Standard Ball Carriages
Temperature Rating:	-40 to 80 deg C
Width:	23 mm
