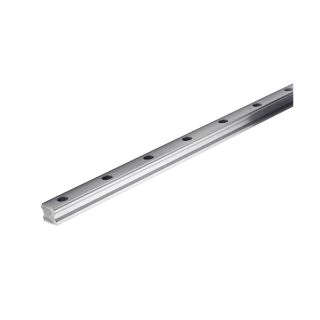

Actual Product May Vary From Image

521H45A+1200 THO

Name: 521H45A+1200 THO
Brand: Thomson Industries
SKU: 521H45A+1200 THO
Availability: OutOfStock

Thomson® 521H45A+1200 500 Profile Rail, Standard Bolt Down From The Top Style, 45 mm Rail, 1200 mm L x 37 mm H

Manufacturer: Thomson Industries

Manufacturer part number: 521H45A+1200

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Profile Rail, Series: 500, Standard Bolt Down From The Top Style, 45 mm Rail, 1200 mm Length, 45 mm Width, 37 mm Height, Hex Head Screw, M12 Screw, 12 Rail Holes, 105 mm Mounting Hole Center to Center, 22.5 mm Mounting Hole to Edge, -40 to 80 deg C, Steel, For Use With: 500 Series Standard Ball Carriages

Standards

RoHS Compliant

Features

Straighter rails through advanced grinding technologies
Simple installation and greater accuracy with joint-free rails up to 6 m
High grade accuracy class

Specifications

Country of Origin:	DE
Height:	37 mm
Length:	1200 mm
Material:	Steel
Mounting Hole Center to Center:	105 mm
Mounting Hole to Edge:	22.5 mm
Number of Rail Holes:	12
Rail Size:	45 mm
Screw Size:	M12
Screw Type:	Hex Head
Series:	500
Style:	Standard Bolt Down From The Top
Suitable For Use With:	500 Series Standard Ball Carriages
Temperature Rating:	-40 to 80 deg C
Width:	45 mm
