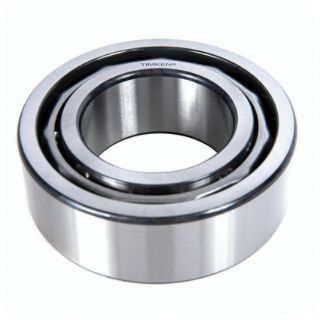

5222W BR TKN

Ball Angular Contact Double Row
Manufacturer: Timken
Manufacturer part number: 5222W BR
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Timken Fafnir

Description

Timken angular contact ball bearings are designed to handle high-speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our Products offering includes a range of single-row universally matched, single-row standard, and double-row products with different cage types, contact angles and tolerances.
Ball Angular Contact Double Row | 110 mm 4.3 in Bore | 200 mm 7.9 in OD

Features

  • Enhanced raceway finish
  • Quiet operation
  • Dimensionally interchangeable

Specifications

Bearing Material:Steel
Bearing Type:Ball Bearing
Bore Size (ID) - in:4.3299
Bore Size (ID) - mm:109.97946
Bore Type:Straight
Closure (Seal) type:Open
Component (I/R; O/R assembly):Assembly
Contact Angle:30
Dynamic Load Rating:71800
Fillet Radius - Inch:0.083
Fillet Radius - Millimeter:2.1082
Flush Ground:No
Inner Ring Width - Inch:2.75
Inner Ring Width - Millimeter:69.85
Load Rating UOM:LB
Manufacturer Product Page Link:https://www.timken.com/products/timken-engineered-bearings/ball/angular-contact/
Material - Rolling Elements (Ball or Roller):Ball
Maximum Capacity / Filling Slot:Yes
Maximum Operating RPM (Grease):41008.0096844516
Maximum Operating RPM (Oil):49209.6116213419
Number of Bearings:1
Operating Temperature Max:120° C
Operating Temperature Min:-50° C
Outer Diameter - in:7.8752
Outer Diameter - mm:200.03008
Outer Diameter Type:Cylindrical
Outer Ring Width - Inch:2.75
Outer Ring Width - Millimeter:69.85
Overall Width - in:2.758
Overall Width - mm:70.0532
Precision class:ABEC-1
Retainer Material:Steel
Rolling Element:Ball
Row Type:Double
Series:5200
Static Load Rating:75800
