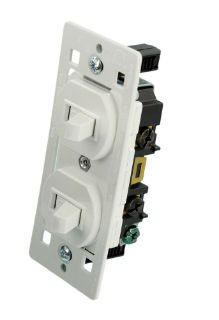

Actual Product May Vary From Image

5224-C0W LEV

Name: 5224-C0W LEV
Brand: Leviton Manufacturing
SKU: 5224-C0W LEV
Availability: OutOfStock

HTH 15A TOG CMBO SWTCH

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5224-C0W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEVITON

Type

Switch With Receptacle

Description

15 Amp 120 Volt 2 Toggle Comination Switch, Single Pole, Spec Grade, White

Application

Commercial

Standards

UL Listed (E-7458);CSA Certified (LR-3413);NOM Certified (057);NEMA (WD-1, WD-6);ANSI (C-73);UL 20;CSA Certified (C222.2 No.111 152105)

Features

Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Permit Conversion to Separate Feeds, Limited Two-Year Warranty, Grounding

Specifications

Actuator:	Toggle
Amperage Rating:	15 AMP
Color:	White
Connection:	Side Wired
Contact Rating:	120/277 VAC;15 AMP
Environmental Conditions:	Flammability (Rated UL 94 V-2)
Material:	Thermoplastic
Mounting:	Wallplate
Nema Rating:	5-15R
Number of Poles:	1
Operating Temperature:	-40 to +120 DEG C
Replacement Parts Material:	Steel (Strap);Thermoplastic (Actuator)
Size:	4.20 H x 1.62 W x 16 D IN
Voltage Rating:	120/277 V

Resources

Spec Sheet
