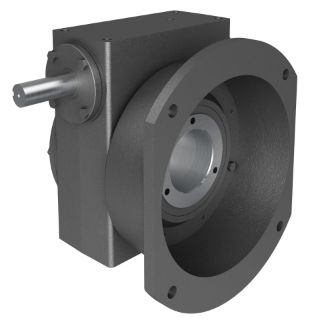

Actual Product May Vary From Image

523 20/1 R WR HUB

Name: 523 20/1 R WR HUB
SKU: 523 20/1 R WR HUB
Availability: OutOfStock

Hub City® 0220-65137 520 Right Angle Single Reduction Style R Worm Gear Reducer, Shaft Input, Hollow Bore Output, 15 hp Input, 20:1 Gear, 87.5 rpm Maximum Output, 9060 in-lb Output Torque Rating

Manufacturer part number: 0220-65137

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 520, 20:1 Gear Ratio, 15 hp Input, Shaft Input, Hollow Bore Output, 1.25 in Dia x 3.27 in L Input, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9060 in-lb Output, 5.16 in Centre Distance, 1/4 x 1/8 in Input Keyway, 83.9 % Efficiency, Conventional Oil Lubrication, Cast Iron, 12.56 in W

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting
QD™ bushings provide widest possible range of bore size in shaft mounted models

Specifications

Centre Distance:	5.16 in
Dimensions:	12.56 in W
Efficiency:	83.9 %
Gear Ratio:	20:1
Horsepower:	15 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.25 in Dia x 3.27 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	87.5 rpm
Output Type:	Hollow Bore
Series:	520
Torque Rating:	9060 in-lb Output
