Actual Product May Vary From Image

523B-15-HP GRL

Name: 523B-15-HP GRL
Brand: Greenlee
SKU: 523B-15-HP GRL
Availability: OutOfStock

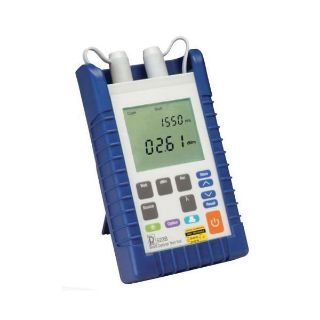

Greenlee® 523B-15-HP Advanced Single Mode Optical Loss Test Set

Manufacturer: Greenlee

Manufacturer part number: 523B-15-HP

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Greenlee®

Advanced Single Mode

Greenlee® Optical Loss Test Set, Advanced Single Mode

ARRA Compliant | RoHS Compliant

1310nm/1550nm dual laser source
Optical power meter with 2mm enhanced indium-gallium-arsenide (InGaAs) photo detector
Large, backlit 2.5 x 2 inch LCD display
Rugged, splash proof, balanced case
Protective rubber boot shields the optical ports from damage
Powered by a rechargeable nickel-metal hydride (NiMH) battery pack, four alkaline batteries, or AC adapter
Built-in NiMH battery charger with external power supply
Data storage for 1000 measurements
RS232 interface for instrument configuration and data transfer to a PC-compatible workstation or serial printer
Pass/fail testing with audible signal
Manual or timer-driven data logging for periods from one second to one hour
+/-0.25 dB absolute accuracy, 970 to 1650 nm wavelength range
1310/1550 nm output wavelength, 25 to -53 dBm Measurement range

Country of Origin:
