524 15/1 C WR 213TC HUB

Name: 524 15/1 C WR 213TC HUB
Brand: Hub City
SKU: 524 15/1 C WR 213TC HUB
Availability: OutOfStock

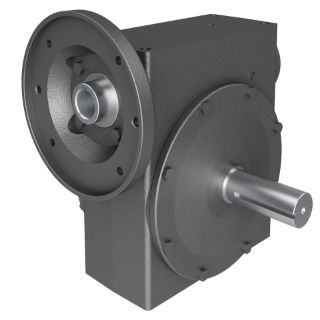

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-65178

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 520, 15:1 Gear Ratio, 19.2 hp Input, C-Face Quill Input, Shaft Output, 1-3/8 in Dia Input, 1.75 in Dia x 4.47 in L Output, 117 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 8861 in-lb Output, 5.16 in Centre Distance, 5/16 x 5/32 in Input, 3/8 x 3/16 in Output Keyway, 85.3 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Country of Origin:	US
Efficiency:	85.3 %
Gear Ratio:	15:1
Horsepower:	19.2 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-3/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	5/16 x 5/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	117 rpm
Output Size:	1.75 in Dia x 4.47 in L
Output Type:	Shaft
Series:	520
Torque Rating:	8861 in-lb Output
