Home / 5242 LEV

5242 LEV

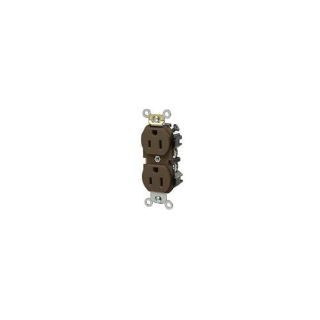

Picture of 5242 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5242
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$10.65 / EA

Description

Brand Name

Leviton®

Type

Heavy Duty Self Grounding

Alternate Supplier #

Grainger - 25ME93

Description

Leviton® line of Heavy Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Leviton®, 5242, Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic Nylon, Brown, 4.06 in H x 1.55 in W x 1.12 in D Dimensions

Application

Commercial Applications

Standards

ANSI (C-73) | CSA C22.2 No. 42 File No. 152105 | NOM Certified | UL Federal Specification WC-596 File No. E13399 | UL 498 File No. E13399 | UL94 Flammability Rating

Features

  • Impact resistant thermoplastic nylon cover and body
  • Smooth face does not collect dirt
  • Four corner latches securely fasten face
  • Large, triple-wipe, brass T contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-off tabs for easy two-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation
  • Wallbox mounting
  • Self-grounding
  • 1-phase
  • 2000 VAC minimum dielectric strength
  • Galvanized steel strap
  • 14 to 10 AWG wire terminal

Specifications

Amperage Rating:15 A
Color:Brown
Country of Origin:MX
Dimensions:4.06 in H x 1.55 in W x 1.12 in D
Enclosure:NEMA WD-1/WD-6
Grade:Industrial/Specification
Horsepower:1/2 hp
Material:Thermoplastic Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125 VAC

Customers who bought this item also bought

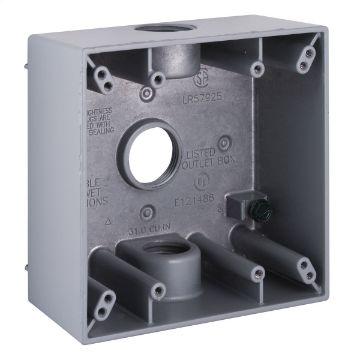

Picture of 5341-0 RAC
