5249-FBA LEV

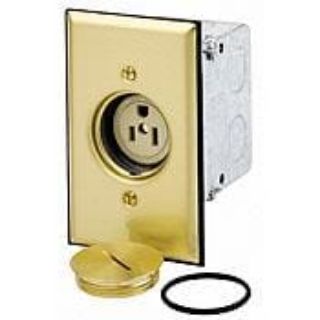

Picture of 5249-FBA LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5249-FBA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Heavy Duty Single

Description

Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, etc., these commercial grade devices are the electrical contractor choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton® Floor Box Outlet, Heavy Duty Single, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Ivory, 4.5 in H x 2.75 in W x 3.7 in D Dimensions

Application

For residential, home/office workstations, great rooms, conference rooms and stages

Standards

UL 498 | UL File No. E13399 | CSA C22.2 File No. 42 | CSA File No. LR406 | NOM 057 Certified | ANSI C-73 | NEMA WD-6 | UL 94 V-2 Flammability Rated | RoHS Compliant

Features

  • Zinc plated steel strap material
  • 3-wire Self-grounding
  • Brass triple wipe 0.031 THK line contacts
  • Brass-plated ground clips
  • Rated V-2 per UL94 flammability
  • Brass 10-32 terminal screws, brass 8-32 grounding screw, zinc plated steel strap clamp nuts material, Brass-plated ground clips, solid brass floor plate material
  • 14-10 AWG wire size
  • Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device
  • Tamper-resistant receptacles meet National electrical Code® 2014 article 406.12 requirements
  • Plate gasket and rubber o-ring combine to seal out moisture and air-borne particles
  • Single receptacle is ideal for applications that require a dedicated circuit
  • Meets NEC 2014 article 314.27B for floor boxes
  • The flange height of 0.27 in meets Americans with Disabilities Act (ADA) standards for accessible design section 4.3.8
  • Nickel-plated brass configurations also available
  • Low voltage 2-gang configurations also available
  • Max 30C after 50 cycles OL at 150 percent rated current
  • Withstands 2000V per UL498 dielectric voltage

Specifications

Amperage Rating:15 A
Color:Ivory
Country of Origin:MX
Dimensions:4-1/2 in H x 3-3/4 in W x 4-1/2 in D
Grade:Commercial
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125 VAC
