524TX RDL

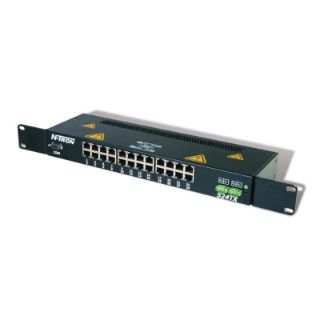

Picture of 524TX RDL
Actual Product May Vary From Image

Product Details

Manufacturers:
RED LION CONTROLS (150020) , RED LION CONTROLS (150020)
Manufacturer part number:
524TX
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,804.11 / EA

Description

Brand Name

redlion®

Type

24-Port Unmanaged

Description

The N-TRON® 524TX Series industrial Ethernet Switch offers outstanding performance and ease of use. It is ideally suited for connecting Ethernet-enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions.
redlion® N-Tron® Ethernet Switch, 24-Port Unmanaged, Series: N-Tron®, (24) 10/100BaseTX RJ-45 Port, 2.6 Gbps Switching, Cat 3/5/MDIX Auto Sensing Cable, DB9 Connector, 10 to 30 VDC, 720 mA at 24 VDC Supply, Rack Mounting, 19 in Width, 1-3/8 in Height, -45 to 85 deg C, Environmental Conditions: 10 to 95% Humidity

Application

For connecting Ethernet enabled industrial and/or security equipment, electric utility substations and shipboard applications

Standards

ABS Approved | ANSI C63.4 | ATEX II 3 G Ex nA | CAN/CSA C22.2 File No. 213 | EMC Directive 89/336/EEC/EN 50204/55011/61000-4-2/3/4/5/6/8/11/61000-6-2/4 | FCC/CE CFR 47 Part 15 Subpart B Class A | GOST-R Certified | ICES-003 | IEEE 802.1D/1613 | RoHS Compliant | UL File No. 508/1604 | UL/cUL Class I Division 2 Groups A/B/C/D/T4

Features

  • Unmanaged plug and play operation
  • Autosensing 10/100 Base-TX, duplex and MDIX
  • ESD and surge protection on all built-in ports
  • Bi-color LED's for link, speed, activity and duplex status
  • Rugged industrial rackmount enclosure

Specifications

Cable Type:Cat 3/5/MDIX Auto Sensing
Connector Type:DB9
Environmental Conditions:10 to 95% Humidity
Height:1-3/8 in
Mounting Type:Rack
Port Type:(24) 10/100BaseTX RJ-45
Power Supply:10 to 30 VDC, 720 mA at 24 VDC
Series:N-Tron®
Switching Capacity:2.6 Gbps
Temperature Rating:-45 to 85 deg C
Width:19 in
