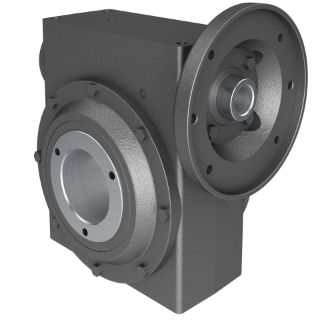

Picture of 525 15/1 A WR 213TC HUB
Actual Product May Vary From Image

525 15/1 A WR 213TC HUB

Hub City® 0220-65192 520 Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 19.2 hp Input, 15:1 Gear, 117 rpm Maximum Output, 8861 in-lb Output Torque Rating
Manufacturer part number: 0220-65192
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.
Hub City® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 520, 15:1 Gear Ratio, 19.2 hp Input, C-Face Quill Input, Hollow Bore Output, 1-3/8 in Dia Input, 117 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 8861 in-lb Output, 5.16 in Centre Distance, 5/16 x 5/32 in Input Keyway, 85.3 % Efficiency, Conventional Oil Lubrication, Cast Iron, 11.13 in W

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

  • Modular design
  • Universal mounting dimensions
  • Alloy shafting

Specifications

Centre Distance:5.16 in
Country of Origin:US
Dimensions:11.13 in W
Efficiency:85.3 %
Gear Ratio:15:1
Horsepower:19.2 hp Input
Input Maximum Speed:1750 rpm
Input Size:1-3/8 in Dia
Input Type:C-Face Quill
Keyway Size:5/16 x 5/32 in Input
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:117 rpm
Output Type:Hollow Bore
Series:520
Torque Rating:8861 in-lb Output
