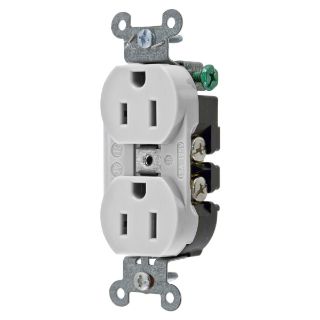

Actual Product May Vary From Image

5252AOW HWD

Name: 5252AOW HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 5252AOW HWD
Availability: OutOfStock

Wiring Device-Kellems Hubbell-PRO 5252AOW 1-Phase Duplex Grounding Heavy Duty Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Off-White

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 5252AOW

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard

Description

Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Off-White, 3.281 in H x 1.406 in W x 1.094 in D Dimensions

Application

Indoor Dry Environment

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42 File No. 285 | Federal Specification W-C-596 | NEMA WD1/WD5

Features

Steel mounting strap and self-grounding

Specifications

Amperage Rating:	15 A
Color:	Off-White
Country of Origin:	US
Dimensions:	3.28 x 1.41 x 1.1 in
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
