Actual Product May Vary From Image

525X 2 TKN

Name: 525X 2 TKN
Brand: Timken
SKU: 525X 2 TKN
Availability: OutOfStock

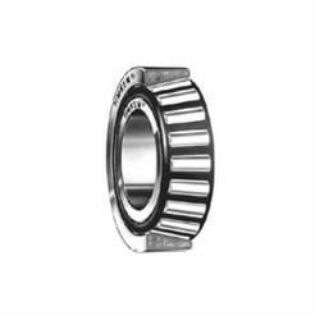

Timken® 525X-2 Type TS Tapered Roller Bearing Cone, 1-1/2 in Dia Bore, 1.42 in W Cone, 0.03 in Max Shaft Fillet Radius, 37000 lb Dynamic/43000 lb Static Load

Manufacturer: Timken

Manufacturer part number: 525X-2

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Type TS

Description

Timken® Tapered Roller Bearing Cone, Type TS, Series: 525, 1-1/2 in Bore, 1.42 in Cone Width, 0.03 in Maximum Shaft Fillet Radius, 37000 lb Dynamic/43000 lb Static Load, Stamped Steel Cage, 176 to 203 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles and Trailer Wheels

Standards

ABMA Certified

Features

Single cone
One-piece pressed steel cage retains rollers on the cone and spaces them evenly

Specifications

Bore Diameter:	1-1/2 in
Cage Material:	Stamped Steel
Cone Width:	1.42 in
Load Capacity:	37000 lb Dynamic/43000 lb Static
Maximum Shaft Fillet Radius:	0.03 in
Series:	525
Temperature Rating:	176 to 203 deg F
